Stainless Steel wall brackets made for our biggest B-Series and E-Series housings. However, they can be attached to any housing with ease. These brackets are able to be securely positioned to most fastening surfaces. The housings have adjustable X&Y axis swivel and tilt functions that will allow the attached item to be fastened into the desired position.
Housing Types:
- Developed for the B-Series, C-Series, D-Series and E-Series Housing
- Can fit other rugged enclosures- Please Contact our Sales Department to Determine Suitability.

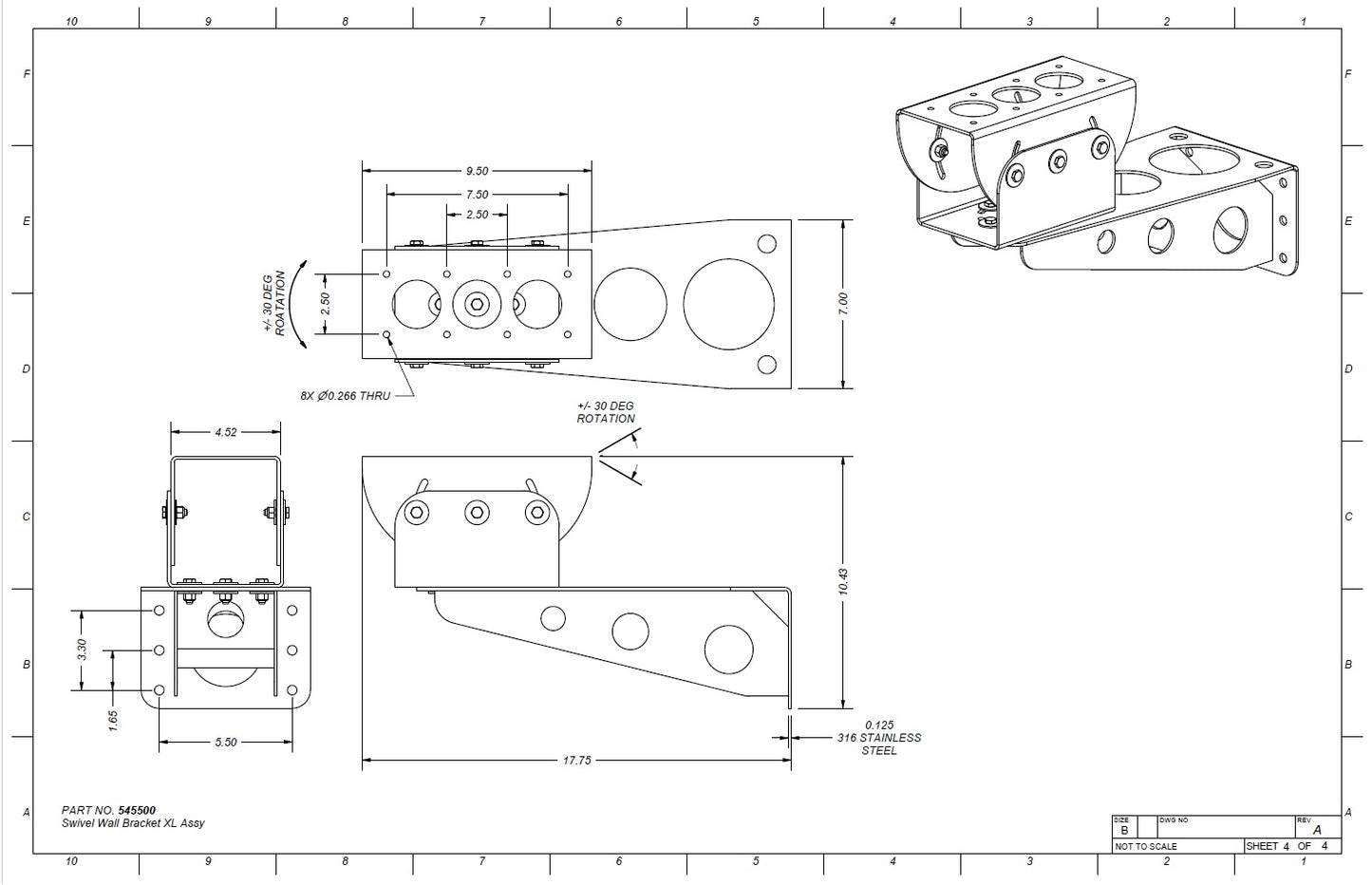

PLEASE SEE Engineering Drawlings for More Details
Key Features:
- Available Finishes: Stainless Steel, Powder Coat Black, Powder Coat White
- +/- 30 Deg X-Axis rotation
- +/- 30 Deg Y-Axis rotation
Dimensions:

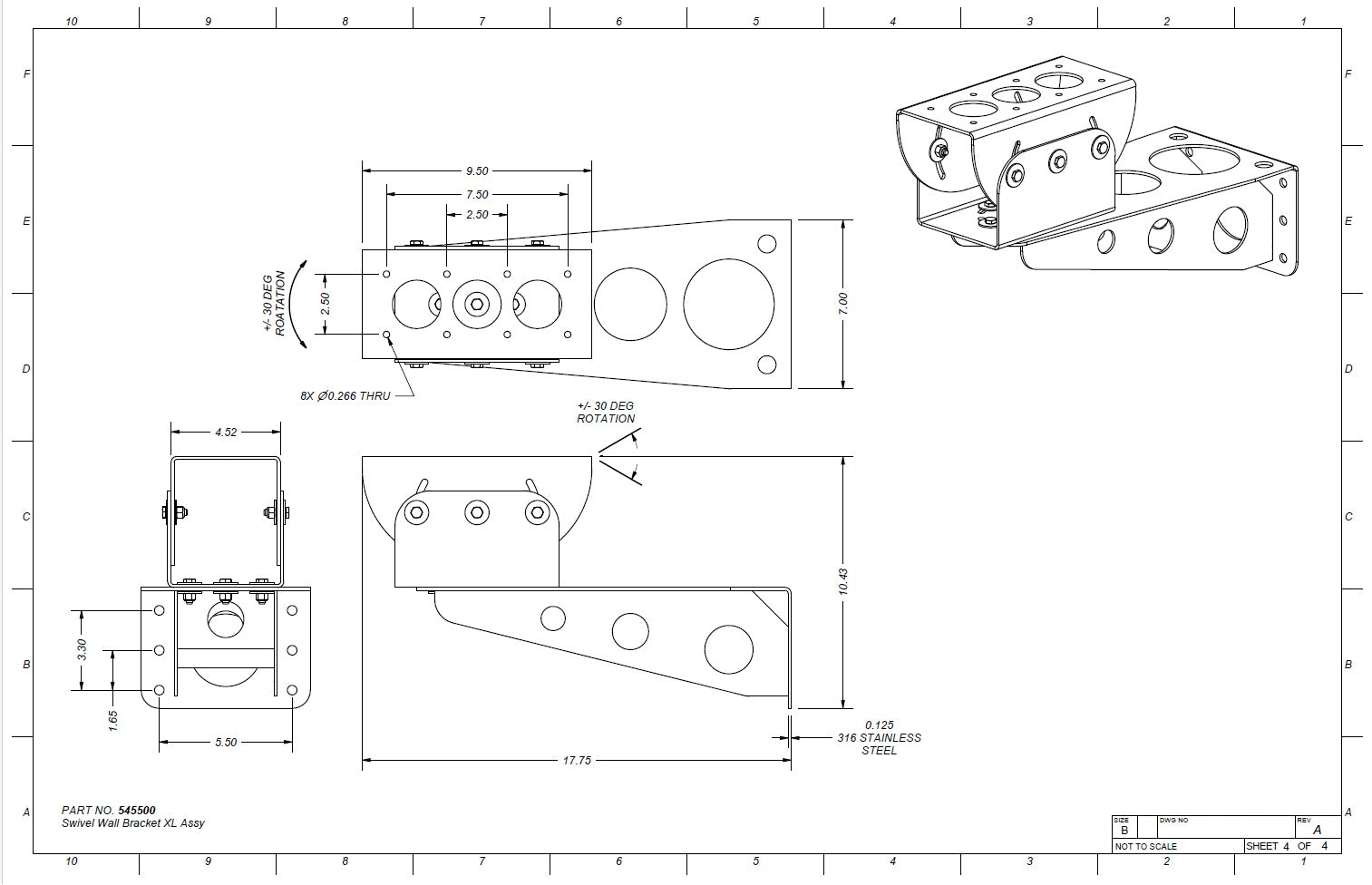

Please See Engineering Diagram for More Information
Pricing is for housing ONLY and does not include any housings, extra screws or tools.
